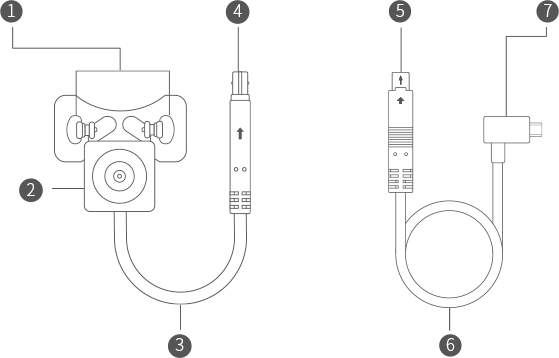

Overview

1. Mounting screw holes	2. Backup camera	3.  Backup camera lead wire	4. Joint (Port A)
5. Joint (Port B)	6. Video signal wire	7. Power port

Note:Illustrations of the product, accessories, and user interface in the user manual are for reference purposes only. The actual product and functions may vary due to product enhancements.

Specifications

Model:Midrive RC08
Resolution: 1920×1080
Field of view: 135°
Operating temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
