1. Installing the electrostatic sticker.

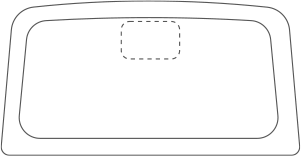

Clean your rear windshield and put the electrostatic sticker on the recommended upper area of the windshield, as shown in the figure below. Make sure you remove air bubbles between the sticker and the glass.

2. Installing the rear camera.
Peel off the protective film from the adhesive sticker on the base of the mount, and paste the rear camera onto the electrostatic sticker in the dotted area.

3. Connecting the power supply.
Connect the rear camera with the rear signal wire (connect ports A and B together).

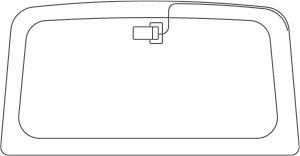

As shown in the figure below, run the wire along the top of the rear windshield, C-pillar, top of the side windows to the main device. Plug the Mini USB 8PIN power port into the main device(the AV/IN port of the main device).

4. Adjusting the dash cam angle.
Turn on the main device and switch to rear camera recording mode. Adjust the camera angle based on the preview screen to ensure that the camera is facing the back of the vehicle.

Note: The installation and wiring methods for different vehicles may differ from what described in the user manual. The installation shall be conducted by a professional installer.
