1. Installing the electrostatic sticker

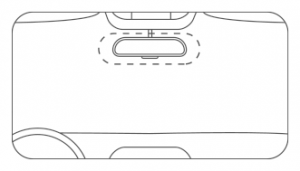

Clean your windshield and put the electrostatic sticker on the recommended area as shown in the figure. Avoid the edge of the windshield and select the flat and smooth area for the installation.
Make sure you remove air bubbles between the sticker and the glass.

2. Installing the memory card

Insert the memory card into the card slot with its contacts facing up until you hear a click. The memory card is well-installed.

3. Mounting the dash cam

Peel off the protective film from the adhesive sticker on the base of the mount, and paste the dash cam onto the electrostatic sticker in the dotted area.

4. Connecting the power supply

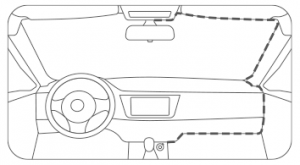

As shown in the figure, run the power cord along the top of the windshield, down the A-pillar, and around the glove compartment, so that the power connector is near the cigarette lighter. Connect the power cord to the car charger, then plug the charger into the cigarette lighter socket.

Note: Depending on the vehicle, the cigarette lighter socket may be located in a different position. The figure provided is for reference only.
