Overview

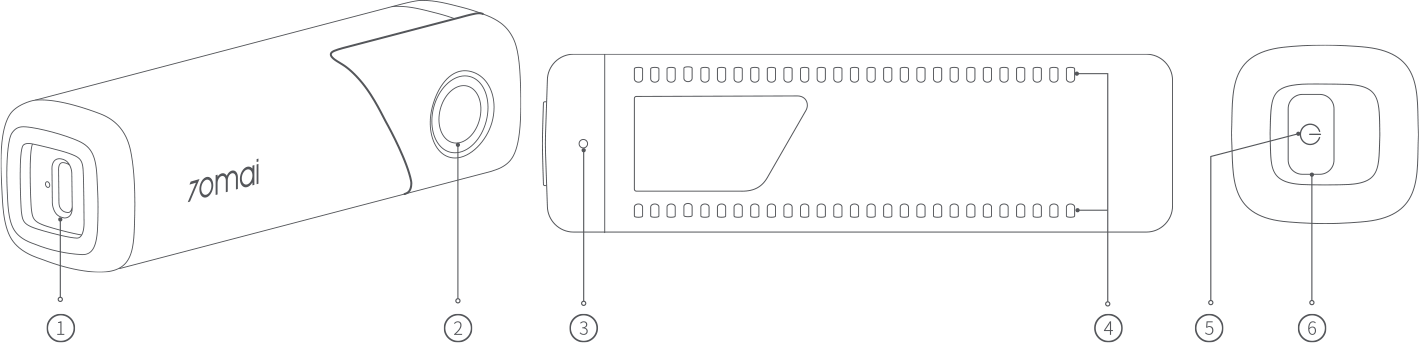

Dash cam

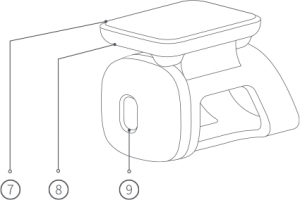

Bracket
| 1. Type-C power port | 2. Camera | 3. Microphone |
| 4. Ventilation holes | 5. Indicator | 6. Power button |
| 7. Heat resistant adhesive | 8. Mount | 9. Power cord hole |
Note: Illustrations of the product, accessories, and user interface in the user manual and user guide are for reference purposes only. The actual product and functions may vary due to product enhancements.
Button functions
Press the power button a different number of times to perform different functions.
| Status | Operation | Function |
| Turned off | Press once | Turn on the device |
| Turned on | Press once | Turn the Wi-Fi on/off |
| Press 4 times in a row | Format the built-in memory card | |
| Press 5 times in a row | Reset factory settings | |
| Press and hold for about 3 seconds | Turn off the device | |
| Receiving the connection request | Press once | Confirm the connection authorization |
| During the operation process | Press and hold for about 15 seconds | Force shut down the device |
Indicator light
The indicator has the following status:
| Status | Description |
| Solid green | Recording normally |
| Flashing green | Recording emergency videos |
| Solid red | Recording abnormally |
| Solid blue | |
| Waiting for the activation from the app when the dash cam is turned on for the first time. | |
| During the beginner’s guide | |
| Entering the album on the dash cam homepage | |
| Entering the “USB disk mode” when the dash cam is connected to the computer. | |
| Flashing blue | |
| Formatting the internal memory card | |
| Restoring factory settings | |
| App is pushing update package to the dash cam | |
| Updating firmware | |
| Detecting/restoring the internal memory card |
Specifications
Product: Dash Cam
Model: M500
Resolution: 2592 × 1944
Lens: FOV 170°/ F2.0
Input: 5 V / 2A
Power supply: Car cigarette lighter
Battery type: Li-ion battery
