Installing the dash cam

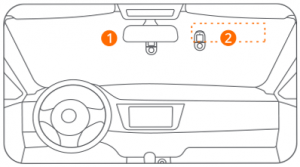

1. Selecting mounting position
Mount the dash cam on either of the recommended positions of front windshield as appropriate: 1. Near the center of rearview mirror; 2. On the front of the passenger seat.

• Notes:
• Make sure the camera is below the level line of the rearview mirror.
• Attach the electrostatic sticker on the selected position, with the gap image facing upwards. Press the sticker to remove air bubbles out.
• Keep windshield clean and dry without liquid residue to prevent the sticker from losing adhesion and dash cam from dropping.

2. Installing the dash cam
Paste the dash cam on the electrostatic sticker.
Make sure the gap on the adhesive sticker aligns with that on the electrostatic sticker and the display screen faces the car interior.

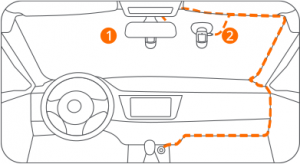

3. Routing cable
Route the power cord to the cigarette lighter and connect to power.

• Notes:
• Use the included crowbar to hide the power cord underneath the vehicle’s headliner and rubber seal along the A-pillar.
• Depending on the vehicle, the cigarette lighter socket may be located in a different position. The figure provided is for reference only.

4. Adjusting the dash cam angle
Hold the dash cam and turn the dash cam up and down to adjust the dash cam angle based on the preview screen.

Installing/uninstalling the mount

The mount is pre-installed on the dash cam. If you need to uninstall it, follow the steps below:

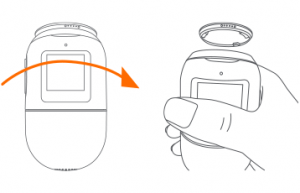

• Uninstalling the mount: Hold the dash cam and screw it clockwise and then the dash cam will separate with the mount.

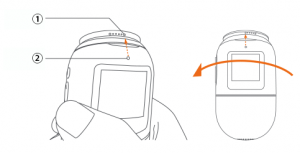

• Installing the mount:
  1. Align the microphone with the big locating point on the right of the mount, and then the dash cam is inserted to the mount.
  2. Hold the dash cam and screw counterclockwise until the microphone is aligned with the big locating point on the left of the mount, and then the dash cam is tightened up with the mount.

① Locating point  ② Microphone
