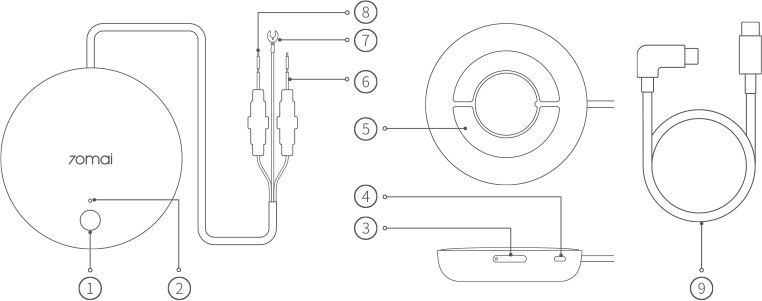

Product overview
| ① Reset button* | ② Indicator | ③ SIM card slot |
| ④ Type-C port | ⑤ Adhesive sticker | ⑥ Power wire (Red) |
| ⑦ Ground wire (Black) | ⑧ ACC signal wire (Yellow) | ⑨ Type-C connecting cable |
* If the product stops responding, press and hold this button to reset it.
Indicator description
- Solid green: 4G module is successfully connected with the Internet and can be used normally.
- Solid blue: 4G module is updating the firmware.
If the indicator blinks, the 4G module is in abnormality status.
1. Blinking red: 4G module cannot station successfully in the operator’s network.
Solutions:
- Ensure that the SIM card is properly inserted into 4G module.
- Ensure that the SIM card data package is valid and that the remaining balance is not zero.
- Ensure that the 4G signal coverage of the operator is available at the vehicle location.
2. Blinking green: 4G module cannot establish communication connection with 70mai cloud properly.
Solutions:
- Ensure that the SIM card data package is valid and that the remaining balance is not zero.
- Ensure a good 4G signal is available from the operator at the vehicle location.
- Ensure that 4G module and dash cam are well connected and both are properly powered up and working.
Specifications
Product: 70mai 4G Hardwire Kit
Model: Midrive UP04
Input: DC 12V to 30V
Output: 5V/2.4A
Negative car power outlet: GND(-)
Positive car power outlet: VCC(+)
Car power: ACC
Note: Illustrations of the product, accessories, and user interface in the user manual are for reference purposes only. The actual product and functions may vary due to product enhancements.
