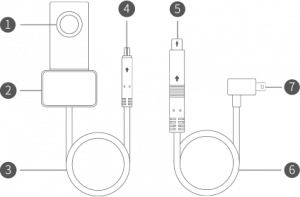

Overview

1. Rear Camera
2. Mount
3. Rear Camera Lead Wire
4. Joint (Port A)
5. Joint (Port B)
6. Rear Signal Wire
7. Mini USB 8PIN Power Port

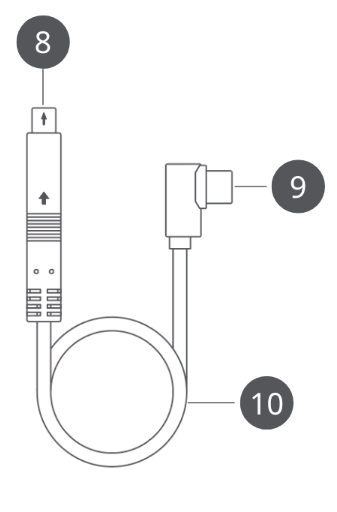

8. Joint (Port C)
9. Type-c Power Port
10. Rear Signal Wire

Note: Illustrations of the product, accessories, and user interface in the user manual are for reference purposes only. The actual product and functions may vary due to product enhancements.

Specifications

Product: Rear Camera
Model: Midrive RC11, Midrive RC12, Midrive RC21, Midrive RC22
Resolution: 1920 × 1080
Input: 5V   0.5A
