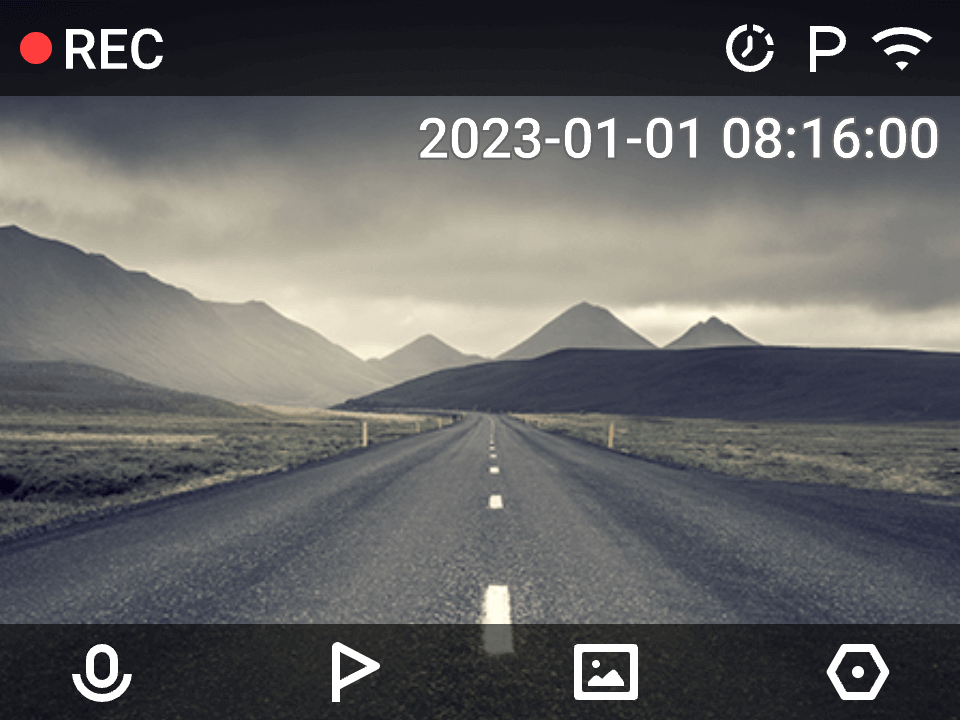

Main screen

When the dash cam is turned on and inserted with a qualified microSD card, it will start recording automatically. The main screen displays the real-time video.

Icons in the status bar:

  • : Indicates that dash cam is in normal recording. In case of abnormal recording, the red dot disappears and displays.
  • : Indicates that time-lapse recording function is enabled.
  • : Indicates that collision detection function is enabled.
  • : Indicates that Wi-Fi hotspot is enabled. If it is disabled, icon displays.
  • Date and time: When the dash cam is activated for the first time, please calibrate the system time in dash cam settings.

Icons in the tool bar:

  • : Indicates that audio recording is enabled. Press the function button below to disable sound recording and this icon turns to .
  • : Press the function button below to record emergency video.
  • : Press the function button below to enter album.
  • : Press the function button below to enter settings.

When the external camera is installed, new icons will display on the main screen:

  • : Indicates that external camera is installed.
  • : Indicates that external camera is installed. Press the function button below to switch between the front and external camera screen.

Note: Illustrations of the product, accessories, and user interface in the user manual and user guide are for reference purposes only. The actual product and functions may vary due to product enhancements.

Button functions

Power button

  • Press the power button to turn on the dash cam (Dash cam should be connected with the external power source).
  • Press and hold the power button for about 3 seconds to turn off the dash cam.
  • Press and hold the power button for about 15 seconds to force shutdown.
  • In the power-on status, press the power button to turn off/light up the screen.

Function buttons

Function buttons have different function in different interface. The specific function will be shown in the function prompt area at the bottom of the screen.

Indicator light

Indicator descriptionDash cam status
Solid greenRecording normally
Flashing greenRecording emergency video
Solid redMemory card is not available, for example, the memory card is removed, damaged, or not qualified.
Solid blue1. During the beginner’s guide
2. Entering the album (whether in the app or the dash cam)
3. The whole process of updating firmware
Flashing blue1. Formatting memory card
2. Restoring factory settings
3. Waiting for authorization when dash cam is connected to the app
