Real-time screen display

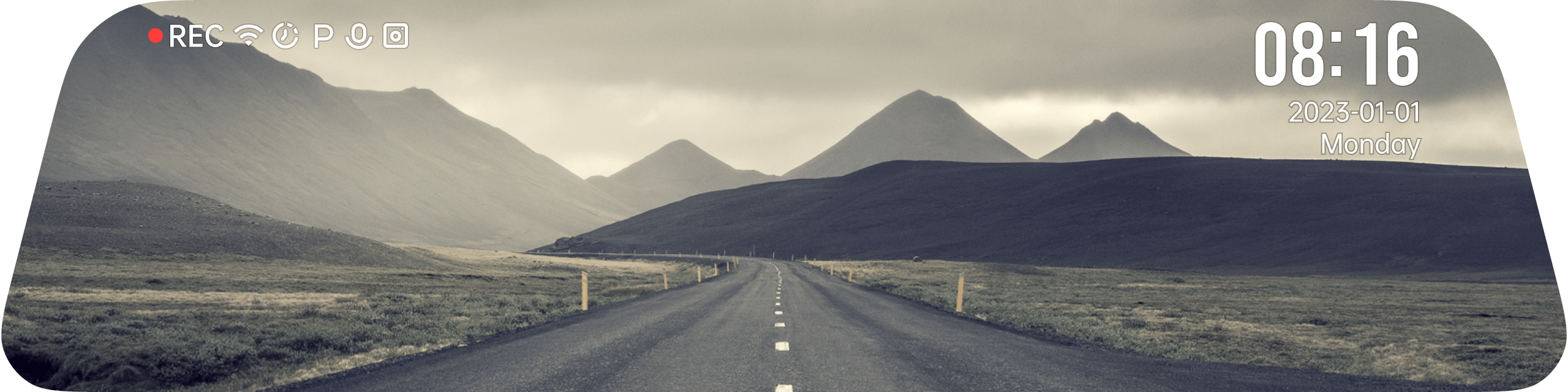

This dash cam is primarily designed for displaying real-time footage. Functions such as video recording, audio recording, and photo taking require the insertion of a memory card. The figure presented here shows the real-time screen when a qualified memory card is inserted and the external camera is connected.

Icon explanation

  • : Indicates that dash cam is recording normally. In case of abnormal recording, the red dot disappears and displays.
  • : Indicates that Wi-Fi hotspot is enabled. If it is disabled, icon displays.
  • : Indicates that time-lapse recording function is enabled.
  • : Indicates that collision detection function is enabled.
  • : Indicates that audio recording is enabled. If it is disabled, icon  displays.
  • : Indicates that external camera is installed. If it is not installed, icon  displays.
  • Date and time: When the dash cam is activated for the first time, please calibrate the system time in dash cam settings.

Other icons

  • : Indicates that memory card is not inserted.
  • : Indicates that memory card is abnormal. Please change or format the memory card.

Switching real-time display mode

The dash cam supports the following display modes to display the real-time feed captured by the camera:

  •  Single display mode: The image from the external camera or the front camera can be displayed in full screen (supports switching between external/front camera).
  • PIP (picture-in-picture) display mode: The image from one camera is displayed on the main screen and the other in the sub-screen (the main screen and the sub-screen can be switched to the external/front camera display).
  • Split (L/R) display mode: The images from the two cameras can be displayed on the both sides of the screen respectively (supports left/right screen swapping).

To switch the display mode, do the following:

  1. Tap the screen to bring up the quick control toolbar;
  2. Tap the icon for the next display mode:
  • : Indicates that next mode is PIP (picture-in-picture) display mode. Tap the icon to change to this mode.
  • : Indicates that next mode is Split (L/R) display mode. Tap the icon to change to this mode.
  • : Indicates that next mode is Single display mode. Tap the icon to change to this mode.
