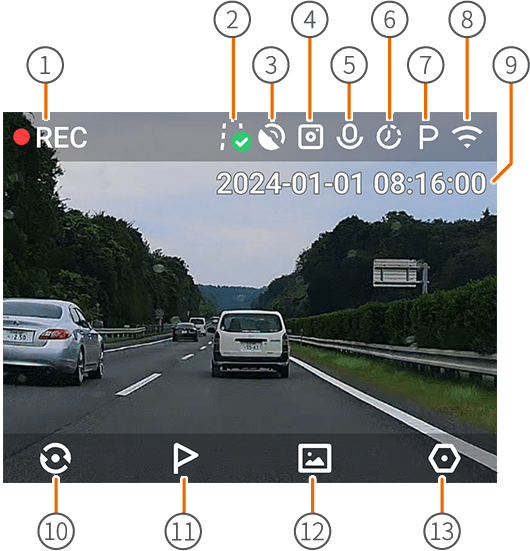

Main screen
When the dash cam is turned on and inserted with a qualified microSD card, it will start recording automatically. The main screen displays the real-time video.
Icon explanation (when an external camera is installed)
Icons in the status bar:
①. Indicates that dash cam is in normal recording. In case of abnormal recording, the red dot will change to white dot and
displays.
②. Indicates that ADAS calibration succeed. During the calibration process, the icon
will be displayed. If calibration fails, this icon will change to
.
③. Indicates that location information has been obtained.
④. Indicates that the external camera is installed.
⑤. Indicates that audio recording is enabled.
⑥. Indicates that time-lapse recording function is enabled.
⑦. Indicates that parking surveillance (collision detection) function is enabled.
⑧. Indicates that Wi-Fi hotspot is enabled. If it is disabled, icon
displays.
⑨. Indicates the current date and time.
Icons in the tool bar:
⑩. Press the function button below to switch between the front and external camera screen. When an external camera is removed, the icon will be replaced by
or
.
⑪. Press the function button below to record emergency video.
⑫. Press the function button below to enter album.
⑬. Press the function button below to enter settings.
Note: Illustrations of the product, accessories, and user interface in the user manual and user guide are for reference purposes only. The actual product and functions may vary due to product enhancements.
Button functions
Power button
- Press the power button to turn on the dash cam (Dash cam should be connected with the external power source).
- Press and hold the power button for about 3 seconds to turn off the dash cam.
- Press and hold the power button for about 15 seconds to force shutdown.
- In the power-on status, press the power button to turn off/light up the screen.
Function buttons
Function buttons have different function in different interface. The specific function will be shown in the function prompt area at the bottom of the screen.
Indicator light
| Indicator description | Dash cam status |
| Solid green | Recording normally Recording parking surveillance video |
| Flashing green | Recording emergency video |
| Solid red | Encountering a recording exception, for example, the memory card is removed, damaged, or not qualified. |
| Solid blue | 1. During the beginner’s guide 2. Entering the album (whether in the app or the dash cam) 3. The whole process of updating firmware |
| Flashing blue | 1. Formatting memory card 2. Restoring factory settings 3. Waiting for authorization when dash cam is connected to the phone |
