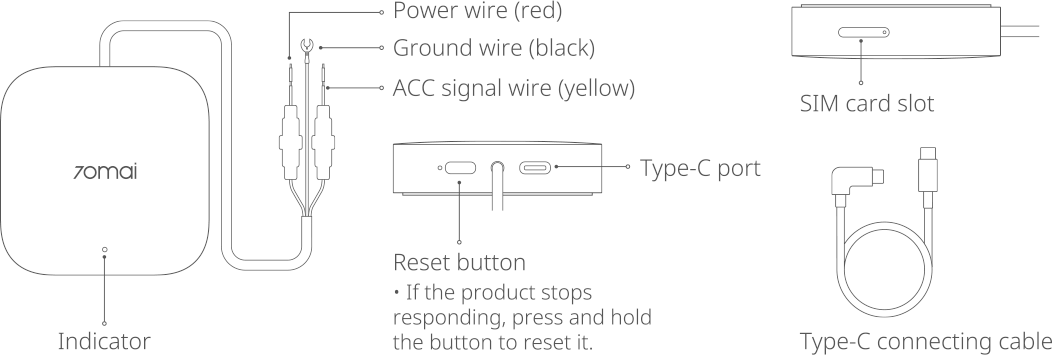

1. Product overview

2. Indicator description

Solid green: 4G module is successfully connected with the Internet and can be used normally.
Blinking red:  4G module is denied network access or Internet access by the operator
The possible reasons are:

• The location does not have 4G signal coverage.
• The operator does not allow the current 4G data card to be used in IoT devices.
• The operator detected that the 4G data card is bound to another device and denied its network access on the current device.
• The operator’s server is down.
• The 4G data card plan is exhausted or expired.
• The 4G data card is physically damaged or has a poor connection with the device’s card slot.

Blinking green: 4G module can register on the operator’s mobile network but cannot connect to 70mai cloud service.
The possible reasons are:

• There is an abnormal network blockage, causing communication issues between the 4G module and 70mai’s server.
• 70mai’s server is down.

Specifications

Product: 70mai 4G Hardwire Kit
Model: Midrive UP05
Input: DC 12V to 30V
Output: 5V/2.4A
Negative car power outlet: GND(-)
Positive car power outlet: VCC(+)
Car power: ACC
Note: Illustrations of the product, accessories, and user interface in the user manual are for reference purposes only. The actual product and functions may vary due to product enhancements.
