Main screen

When the dash cam is turned on and a qualified microSD card is inserted, the dash cam will start recording automatically. The main screen displays real-time video.

* A qualified microSD card needs to be between 32GB–512GB in capacity and have a write speed of U3 (UHS-3) or higher.

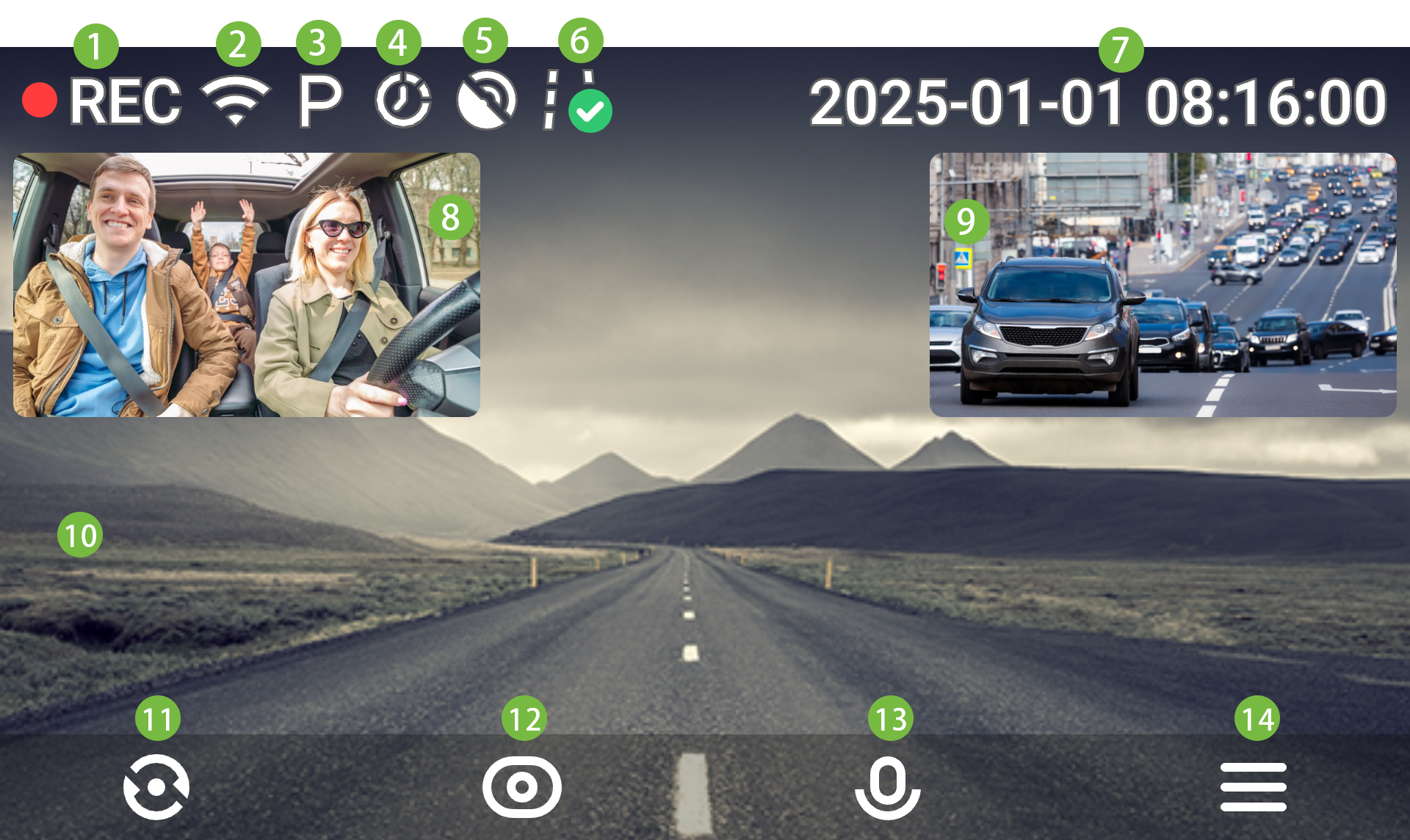

Icon explanation

Status bar icons:

1. Indicates that the dash cam is in normal recording mode. In the case of abnormal recording, the red dot will change to a white dot and  be displayed.
2. Indicates that the Wi-Fi hotspot is turned on. If it is turned off, the icon  will be displayed.
3. Indicates that the parking monitoring function (collision detection video recording or motion detection) is enabled.
4. Indicates that the time-lapse recording function is enabled.
5. Indicates that location information has been collected.
6. Indicates successful ADAS calibration. During the calibration process, the icon will be displayed. If the calibration fails, this symbol will change to .
7. Displays the current date and time.
8. Displays real-time images recorded by the cabin camera.
9. Displays the real-time image recorded by the rear camera (the rear camera must be installed first).
10. Displays the real-time image recorded by the front camera.

Icons on the toolbar:

11. Press the lower function button to switch between the front camera screen, rear camera screen, and cabin camera.
12. Press the lower function button to turn on/off the cabin camera.
13. Press the lower function button to turn the sound on/off.
14. Press the function button below to enter the settings.

Button Function

Power Button

• Press the power button to turn on the dash cam (The dash cam needs to be connected to an external power source).
• Press and hold the power button for about 3 seconds to turn off the dash cam.
• In the power-on state, press the power button to turn off/illuminate the screen.
• In the power-on state, press the power button twice to record an emergency video.

Function buttons

The function buttons have different functions in different interfaces. The specific function will be displayed in the function hint area at the bottom of the screen.

Indicator Light

Indicator Light Description	Dash cam status
Solid green	Recording a common video Recording a parking surveillance video (including time-lapse video)
Flashing green	Recoding an emergency video
Solid red	Encountering a recording failure. For example, the device detects that the memory card has been removed or deteriorated, or the inserted memory card does not meet the capacity or read/write speed requirements.
Solid blue	Connecting to the phone and waiting for authorization Providing guidance for the beginner Accessing the album (on the device or app) Entering “U disk mode” when connecting to a computer
Flashing blue	Updating the firmware Formatting the memory card Restoring the factory settings Detecting/repairing the memory card
