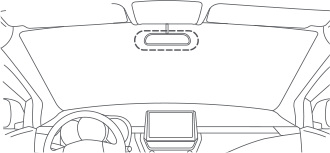

1. Installing the electrostatic sticker

Paste the electrostatic sticker on the recommended area on the front windshield. Press the sticker to remove air bubbles out.

Avoid the edge of the windshield and select the flat and smooth area for the installation.

Note: Keep the windshield clean and dry without liquid residue to prevent the sticker from losing adhesion and dash cam from dropping.

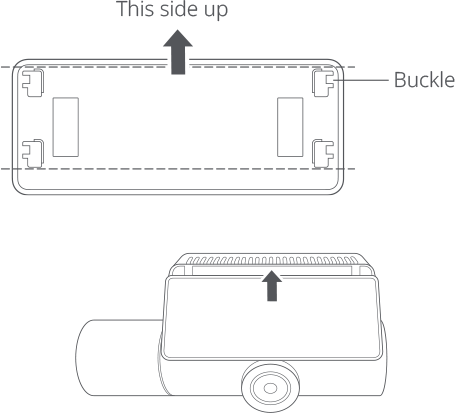

2. Installing the mount

Attach the mount to the mount slot and slide up.

Pay attention to the direction of the mount. The side where the buckles are close to the edge of the mount faces upwards.

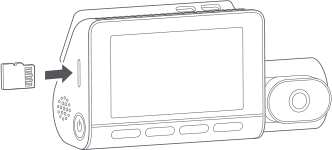

3. Installing the memory card

Insert the memory card into the slot.

4. Mounting the dash cam

Paste the dash cam onto the electrostatic sticker.

5. Connecting the power cord

Connect the dash cam and car charger with the power cord.

6. Routing cable

Route the power cord to the vehicle’s power outlet and plug the car charger into the power outlet. Start the car engine, and the dash cam will automatically turn on.

Notes:

• • Use the included wiring trim tool to hide the power cord underneath the vehicle’s headliner and rubber seal along the A-pillar.
  • Depending on the vehicle, the power outlet may be located in a different position. The provided figure is for reference only.

7. Adjusting the camera angle

Adjust the camera angle based on the image presented on the main screen when dash cam is turned on.
