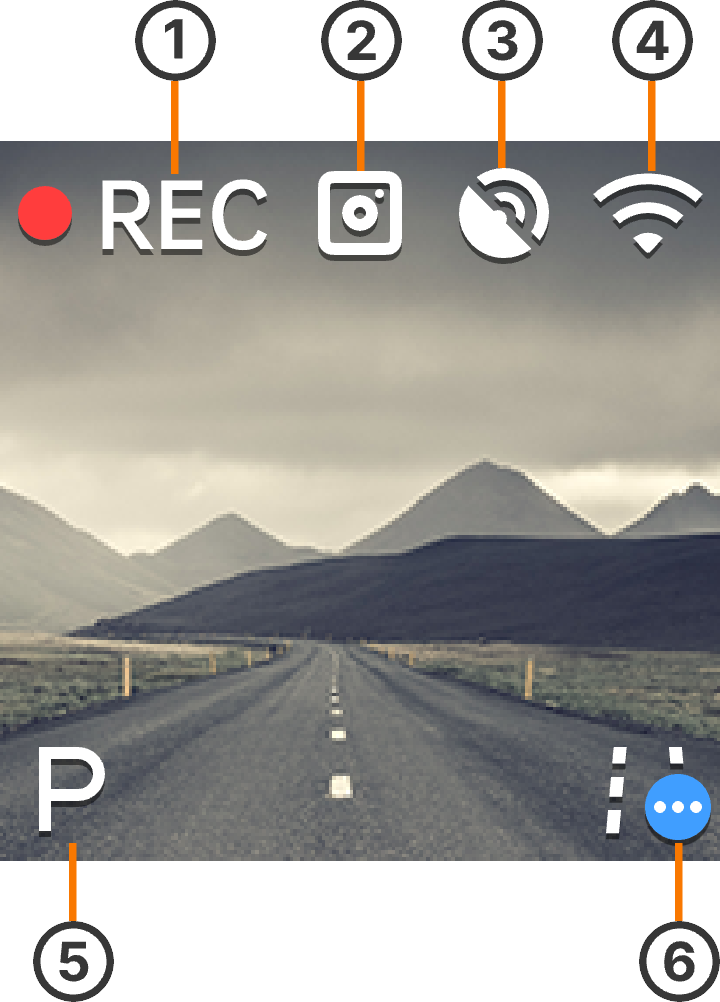

Main screen

Insert the microSD card and turn on the dash cam to start recording. The main screen displays recorded images in real-time and icons indicating various functional states.
* A qualified microSD card requires capacity of 32GB ~ 512GB at a read/write speed of U3 (UHS-3) or higher.

Icon explanation

1. Indicates whether recording is in progress. If an exception occurs, (red dot) will change to (white dot) and will display.
2. Displayed when the dash cam is connected to the rear camera.
3. Indicates that location information has been obtained.
4. Indicates that the Wi-Fi hotspot is enabled. is displayed if the Wi-Fi hotspot is disabled.
5. Indicates that parking surveillance (collision detection/activity detection recording) is enabled.
6. indicates that the Advanced Driver Assistance System (ADAS) has been successfully calibrated. During the calibration process, the icon will be displayed. If calibration fails, this icon will change to.

Function buttons

Button type	Operation	Function
Power button	Press once when the dash cam is turned off. Note: The dash cam should be connected with external power source.	Turn on the device.
	Press once on the quick control panel or menu page.	Confirm your selection.
	Press twice on the home page.	Record an emergency video.
	Press and hold for about 3 seconds.	Turn off the device.
	Press and hold for about 15 seconds.	Force shutdown the device.
Up button	Press once on the home page.	Go to the end of the quick control panel.
Down button	Press once on the home page.	Go to the start of the quick control panel.

Indicator

Indicator Status	Dash Cam Status
Steady blue	1. Initially turning on 2. Formatting succeeded 3. Restoring to factory settings succeeded 4. Activating the 4G module succeeded 5. GPS positioning succeeded
Breathing blue	1. Connected with 70mai app and accessing to the album 2. Initially turning on and to be activated 3. Providing guidance for the beginner 4. Connected with 70mai app and upgrading the package 5. Formatting the internal storage 6. Restoring to factory settings 7. Turning on the dash cam on user’s birthday if the user’s birthday information has been filled in the 70mai app and synchronized with the dash cam
Steady red	1. Detecting/repairing the internal storage 2. ADAS broadcasting events 3. Triggering activity detection when the dash cam is in the parking working status 4. Triggering collision detection when the dash cam is in the parking working status and the monitoring light is turning on
Steady yellow, and rotating clockwise at a speed of 1 second per revolution	1. Formatting failed 2. 4G network disconnected when the dash cam connecting and activating the 4G module 3. GPS positioning failed 4. TF card storage exception
