Viewing album in the 70mai app

1. Open the 70mai app, connect the dash cam and enter the dash cam homepage.
2. Tap icon  to enter Album.
3. View the recorded videos in Timeline or Categories.
4. View photo in Categories > Photo folder.

• Timeline: Video types are distinguished by color in the timeline bar. Drag the timeline to the video clip you would like to view, and then the video will replay automatically once the buffer is completed.

Tap the icon  on the screen to switch between front camera video and rear camera video. Note that when the video plays back in full screen, the icon  will disappear.

• Categories: All types of recorded videos are saved in the All videos folder. Emergency video, parking surveillance video, Vlog and time-lapse video display icon on the thumbnail to distinguish them from normal (standard) video.
  1. No icon: Normal (standard) video
  2. : Parking surveillance video
  3. : Time-lapse video
  4. : Emergency video
  5. : Vlog

Select the camera you want to view, and then tap the video thumbnail to replay. Emergency video, parking surveillance video and time-lapse videos have separate folders. Open the folder, select the camera and select the video to replay.
Open the Photo folder, select the camera and select the photo to view.
Deleting videos/photos
Try any of the following to delete video and photo:

• Go to Album > Categories in the dash cam homepage in the app, open the video or photo folder, select the video and delete.
• Delete photo in the Photo folder in the dash cam or the 70mai app.

When downloading one front camera video, the simultaneous rear camera video wouldn’t be downloaded automatically. Please download separately.

Sharing videos/photos

1. Open the 70mai app and tap icon  on the left upper corner.
2. Tap Local album. Select photo or video and then tap Share.

RS effect
During the operation, dash cam records videos and saves the vehicle’s driving status as well as the road conditions. Those data can be visualized and overlaid on the recorded video image, called RS effect. When you replay videos, tap RS and the data will overlay on the video image.

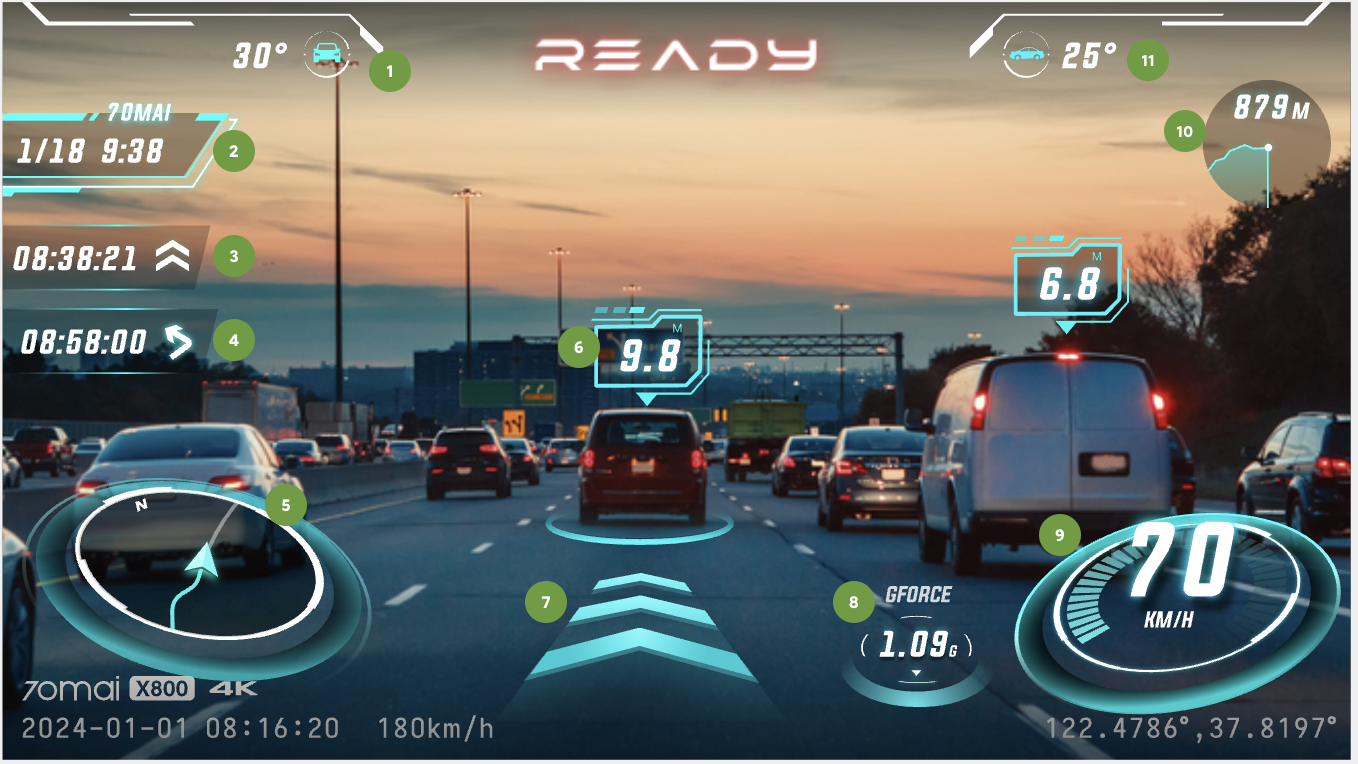

RS effects icon explanation

1. Roll angle
2. Date and time
3. A rapid acceleration event is identified and the event time displays on the left.
4. Sharp turn
5. Driving direction
6. Vehicle identification
7. Lane recognition
8. Acceleration indicator
9. Current speed. If the speed exceeds 120km/h, the circle and value turn red.
10. Altitude
11. Pitch angle

If the dash cam does not turn on ADAS function, lane recognition and vehicle identification cannot appear in RS effect.
Once the ADAS function is turned on and calibrated successfully, the above logo will appear on the RS special effect of the subsequent recorded video.
