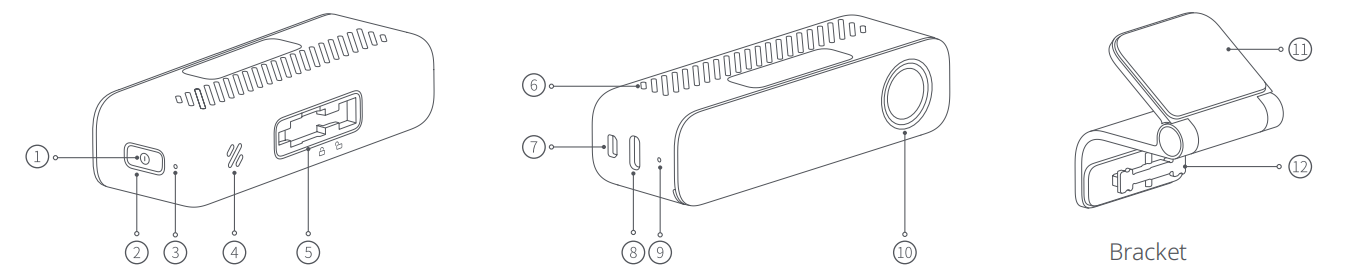

Overview
| 1. Power button | 2. Indicator | 3. Reset hole |
| 4. Speaker | 5. Mounting hole | 6. Ventilation holes |
| 7. Rear camera port | 8. Power port | 9. Microphone |
| 10. Camera | 11. Adhesive sticker | 12. Bracket clip |
Note: Illustrations of the product, accessories, and user interface in the user manual and user guide are for reference purposes only. The actual product and functions may vary due to product enhancements.
Button functions
Press the power button a different number of times to perform different functions.
| Status | Operation | Function |
| Turned off | Press once | Turn on the device |
| Turned on | Press and hold for about 3 seconds | Turn off the device |
| Press once | Turn the Wi-Fi on/off | |
| Press 4 times in a row | Format the memory card | |
| Press 5 times in a row | Reset factory settings | |
| Press 2 times in a row | Turn the defogging mode on/off | |
| Receiving the connection request from the phone | Press once | Confirm the connection authorization |
Specifications
Product: Dash Cam
Model: M800, M800-2
Input: 5V = 2A
Battery capacity: 500mAh
Resolution: 3840×2160
Lens: FOV 146°/ F1.7
Battery type: Li-ion battery
Power supply: Car cigarette lighter
Item dimensions: 108×37.5×27.5mm
Wireless connectivity: Wi-Fi IEEE 802.11 a/b/g/n 2.4GHz & 5GHz, Bluetooth™ 5.2
Wi-Fi operation frequency: 2400-2483.5MHz & 5170-5835MHz
Wi-Fi maximum output: ≤ 20dBm
Bluetooth Operation Frequency: 2400-2483.5 MHz
Bluetooth maximum output: ≤ 10dBm
