Installing Bracket
1. Ensure that the adhesive sticker is facing upwards, and then insert the bracket clip into the mounting hole.

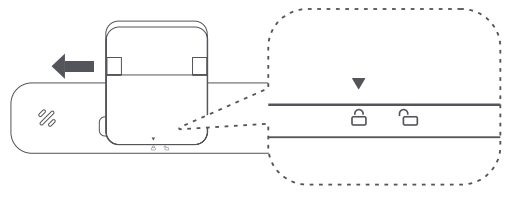

2. Push the bracket to the left until the triangle icon is aligned with , indicating the bracket installation is complete.

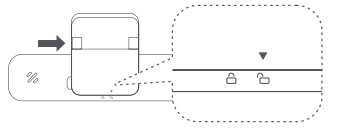

3. If you need to disassemble it, push the bracket to the right until the triangle icon on the bracket is aligned with . Then the dash cam can be removed.

Installing Dash Cam

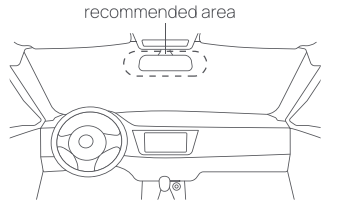

1. Select the flat and smooth area to install the electrostatic sticker.

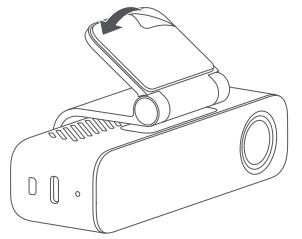

2. Remove the protective film of the adhesive sticker and stick the dash cam on the electrostatic sticker with the camera facing the direction outside the vehicle.

3. Adjust the angle by moving the bracket.

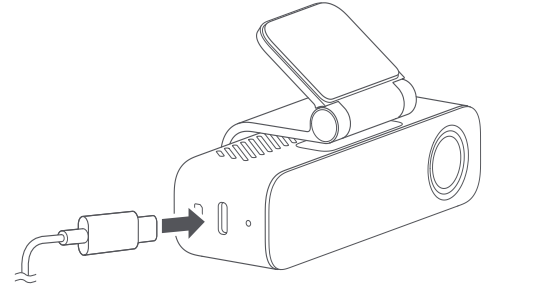

4. Connecting the power cord

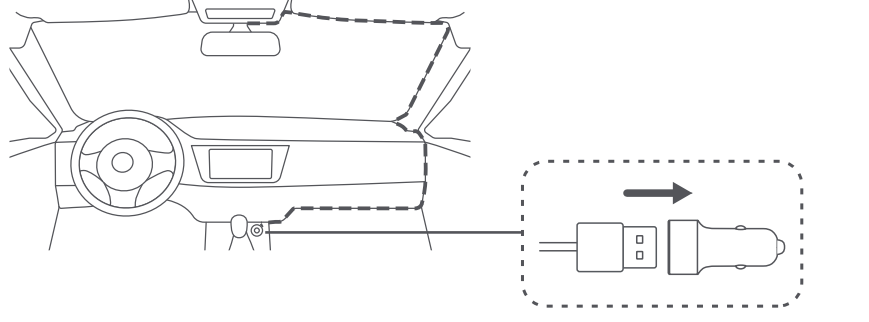

5. Connecting to the cigarette lighter and routing the cable according to the diagram as follows:
