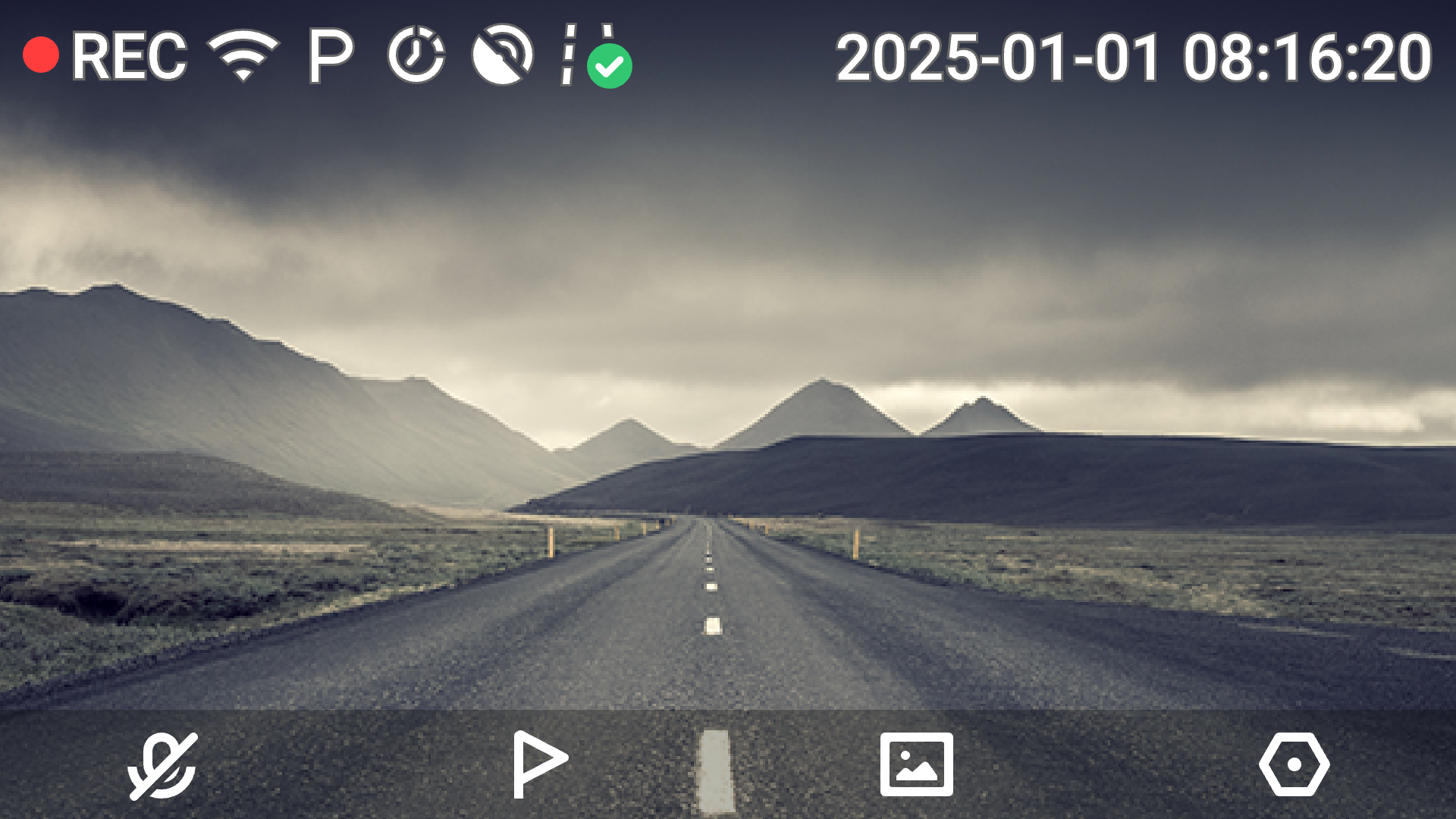

Main screen

When the dash cam is turned on and inserted with a qualified microSD card, it will start recording. The main screen displays the recorded image in real time and icons showing the status of different features.

Icon explanation(from left to the right, top to the bottom)



  •  : Indicates that dash cam is in normal recording. In case of abnormal recording, the red dot disappears and   displays.
  • : Indicates that Wi-Fi hotspot is enabled. If it is disabled, icon  displays.
  • :Indicates that parking surveillance is on.(Available only when a parking surveillance cable is installed)
  • : Indicates that the location information has been obtained.
  • : Indicates that ADAS has successfully calibrated. During the calibration, icon   displays and icon replaces if calibration fails.
  •  : Indicates that audio recording is enabled. Press the function button below to disable sound recording and this icon turns to  .
  •  : Press the function button below to record emergency video.
  •  : Press the function button below to enter Album.
  •  : Press the function button below to enter Settings. You can adjust various settings of the dash cam.

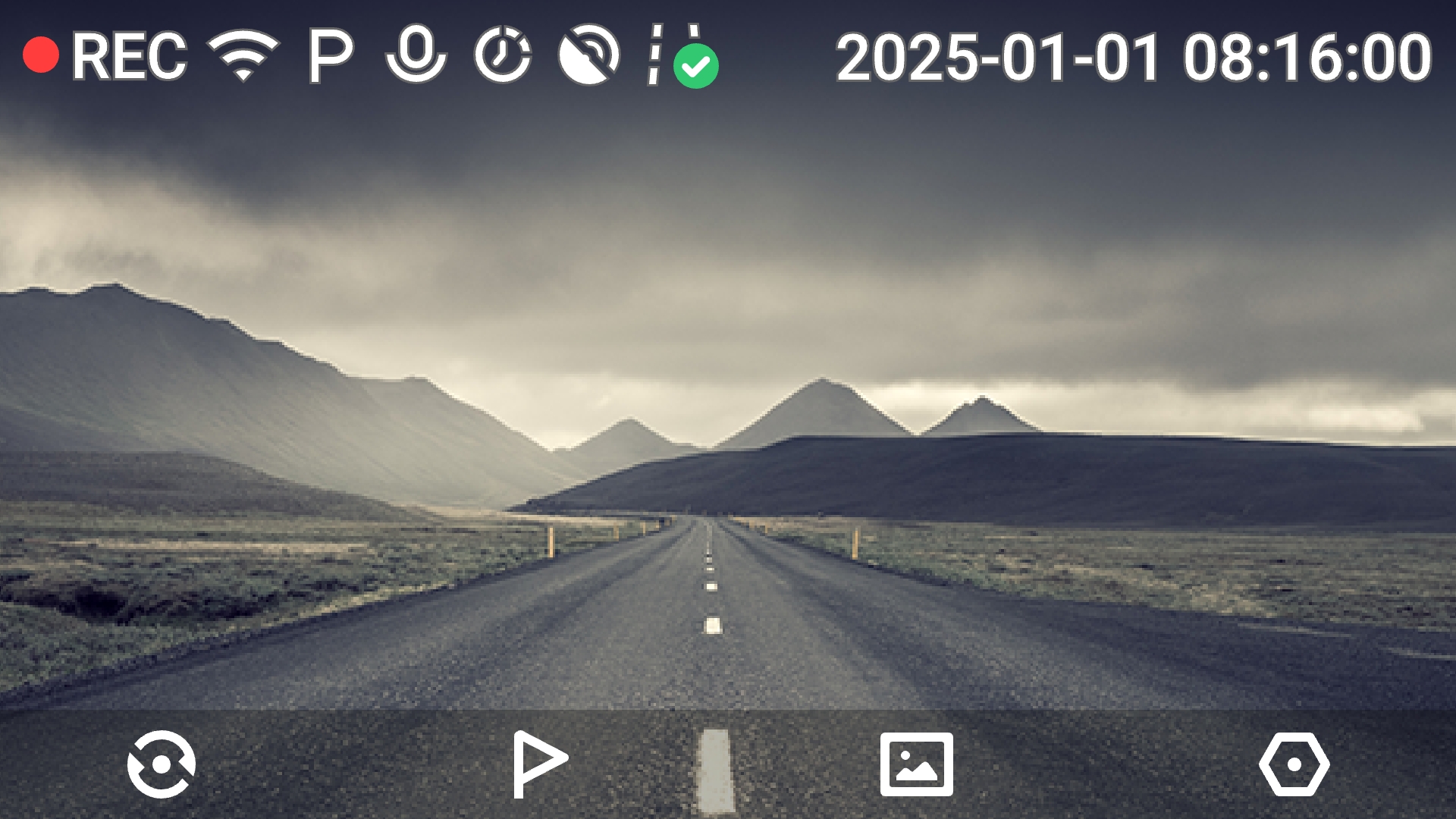

When the backup/rear camera is installed, icons on the main screen will change to as follows:

 : Indicates that backup/rear camera is installed. Press the function button below to switch between the front and backup/rear camera screen.

In this case, the audio recording icon moves to the status bar. If you want to enable/disable the audio recording, press the function button below icon  to enter Settings, select Sound settings > Audio recording.

Note: Illustrations of the product, accessories, and user interface in the user manual and user guide are for reference purposes only. The actual product and functions may vary due to product enhancements.

Button functions

Power button

  • Press and hold the power button to turn on/off the dash cam (Dash cam should be connected with external power source).
  • Press and hold the power button for about 15 seconds to force shutdown.
  • In the power-on status, press the power button to turn off/light up the screen.

Function buttons

Function buttons have different function in different interface. The specific function will be shown in the function prompt area at the bottom of the screen.

Indicator light

Indicator descriptionDash cam status
Solid greenRecording a common video.
Flashing green1. Recording an emergency video
2. Recording a parking surveillance video.
Solid red1. Encountering a recording failure. For example, the device
detects that the memory card has been removed or
deteriorated, or the inserted memory card does not meet the capacity or read/write speed requirements.
2.  Encountering a system malfunction that is causing the recording to stop.
Solid blue1. Providing guidance for the beginner
2. Accessing the cam album from the App
3.  Awaiting authorization to connect 70mai App.
4. Connected to a computer and functioning as a flash
drive.
4.  Executing OTA update.
Flashing blue1. Formatting the memory card
2. Restoring the factory settings
3. Receiving OTA upgrade package from the App.
4. Detecting an SD card.
