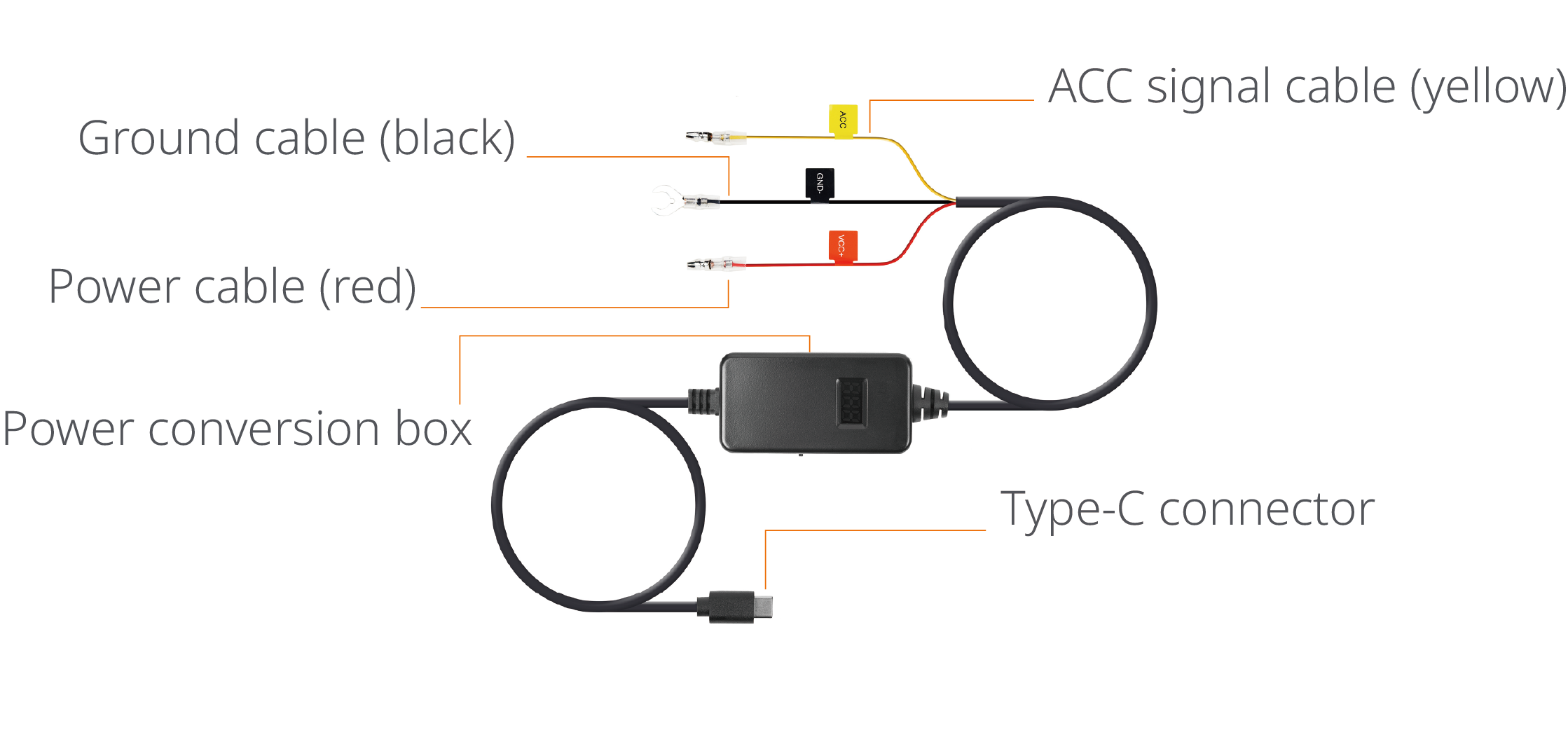

Overview

Specifications

Product: 70mai Adjustable Hardwire Kit
Model: Midrive UP06
Input: DC 12–30 V
Output: DC 5V = 2.4 A
Negative car power outlet: GND (−)
Positive car power outlet: VCC (+)
Car power: ACC
Low voltage protection 12V: 11.8 V/12.1 V/12.4 V
Low voltage protection 24V: 23.6 V/24.0 V/24.4 V

Note: Illustrations of the product, accessories, and user interface in the user manual are for reference purposes only. The actual product and functions may vary due to product enhancements.
