1. Select a flat and clean area on the center console. Peel off the protective film from the adhesive sticker and adhere the module to the center console.

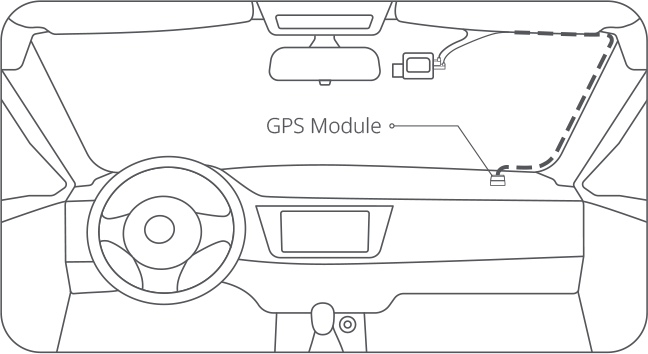

2. Route the power cord alone the base of the front windshield, the A pillar, and the top of the windshield to the main device. Insert the Mini 8PIN USB connector to the GPS module port on the main device.

Note: To ensure the normal acquisition of GPS signal for device, make sure its logo side is facing towards the sky during the installation. Do not install the device on the windshield.
