Installation

1. Installing the electrostatic sticker

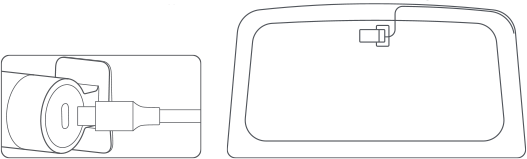

Clean your rear windshield and put the electrostatic sticker on the recommended upper area of the windshield, as shown in the figure below. Make sure you remove air bubbles between the sticker and the glass.

2. Installing the rear camera
Peel off the protective film from the adhesive sticker on the base of the mount, and paste the rear camera onto the electrostatic sticker in the dotted area.

3. Connecting the power supply
① Insert the rear camera connector into the power port of the rear camera.
② Run the rear camera wire along the top of the rear windshield, C-pillar, top of the side windows to the main device.
③ Insert the dash cam connector into the AV/IN port of the main device.

4. Adjusting the dash cam angle
Turn on the main device and switch to rear camera recording mode. Adjust the camera angle based on the preview screen to ensure that the camera is facing the back of the vehicle.

Note: The installation and wiring methods for different vehicles may differ from what described in the user manual. The installation shall be conducted by a professional installer.
