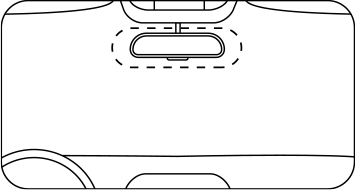

1. Installing the electrostatic sticker
Clean your front windshield and put the electrostatic sticker on the recommended area of the windshield, as shown in the figure.
Make sure you remove air bubbles between the electrostatic sticker and the glass.

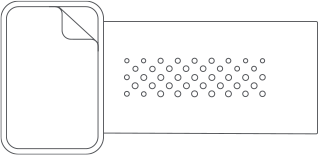

2. Installing the interior dash cam
Peel off the protective film from the adhesive sticker on the base of the mount.
Make sure the ambient light sensor side of the dash cam is facing down, and paste the interior dash cam onto the electrostatic sticker in the dotted area.
Note: Make sure the ambient light sensor side of the dash cam is facing down during the installation, otherwise the images the dash cam recorded may turn upside down.

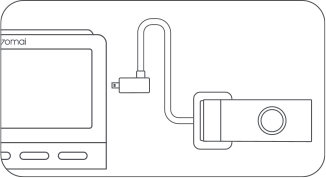

3. Connecting the power supply
Connect the Mini USB 8PIN power port of the interior dash cam with the main device (the AV/IN port of the main device).

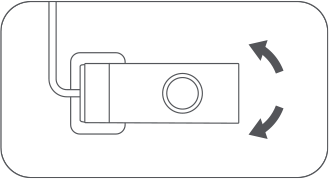

4. Adjusting the camera angle
Turn on the main device and switch to interior recording mode. Adjust the camera angle based on the preview screen.
Note: The installation for different vehicles may differ from what described in the user manual. The installation shall be conducted by a professional installer.
