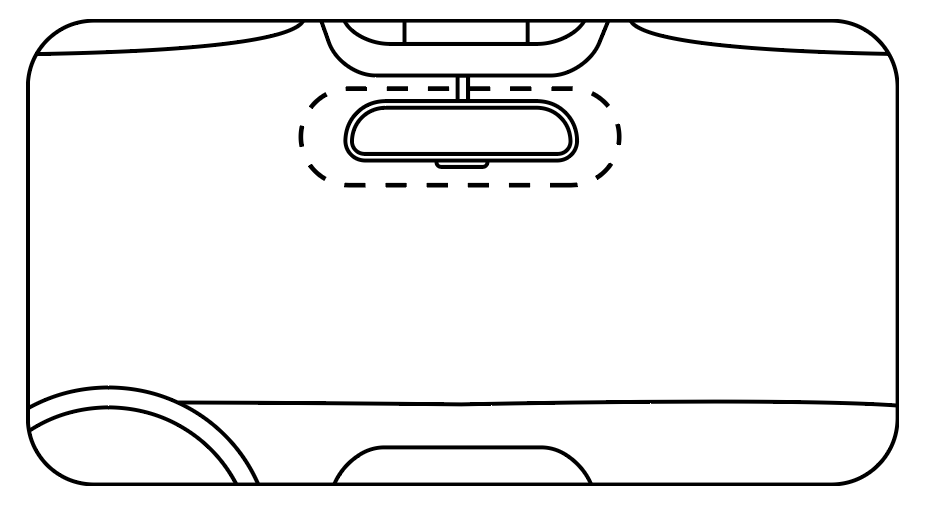

1. Installing the electrostatic sticker

Paste the electrostatic sticker on the recommended area on the front windshield, near the main device. Press the sticker to remove air bubbles out.

Avoid the edge of the windshield and select the flat and smooth area for the installation.

Note: Keep the windshield clean and dry without liquid residue to prevent the sticker from losing adhesion and camera from dropping.

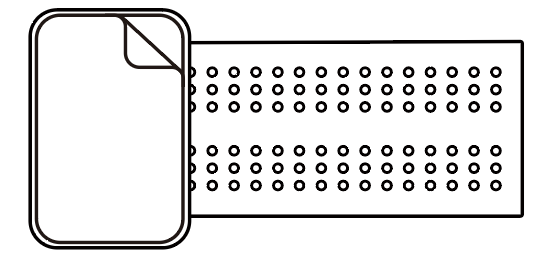

2. Mounting the camera

Remove the release liner on the mount and paste the camera to the electrostatic sticker.

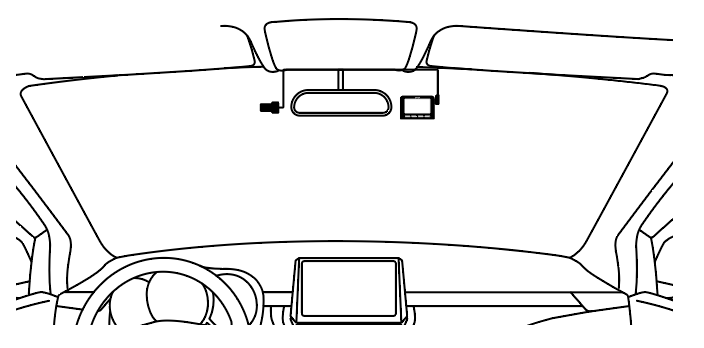

3. Wiring cable

Route the cord to the main device and insert the AV/IN connector into the AV/IN port of the main device.

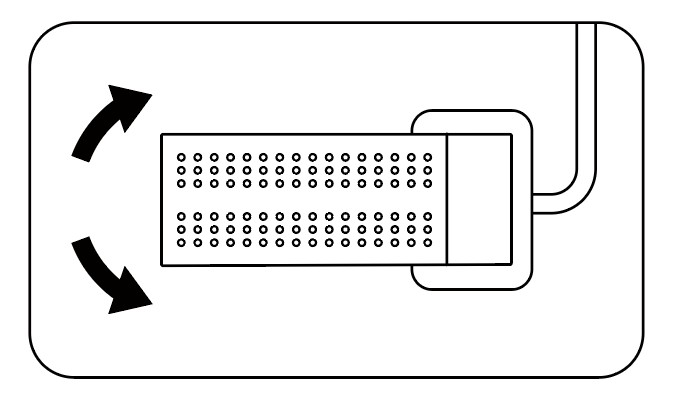

4. Adjusting the camera angle

Turn on the main device and switch to the telephoto camera view. Adjust the camera angle based on the preview screen.

Notes:

• The installation and wiring methods may vary from the user manual for different vehicles. Please have the installation performed by a professional mechanist.
• Before installation and wiring, please turn off the car engine and power to prevent short circuit.
