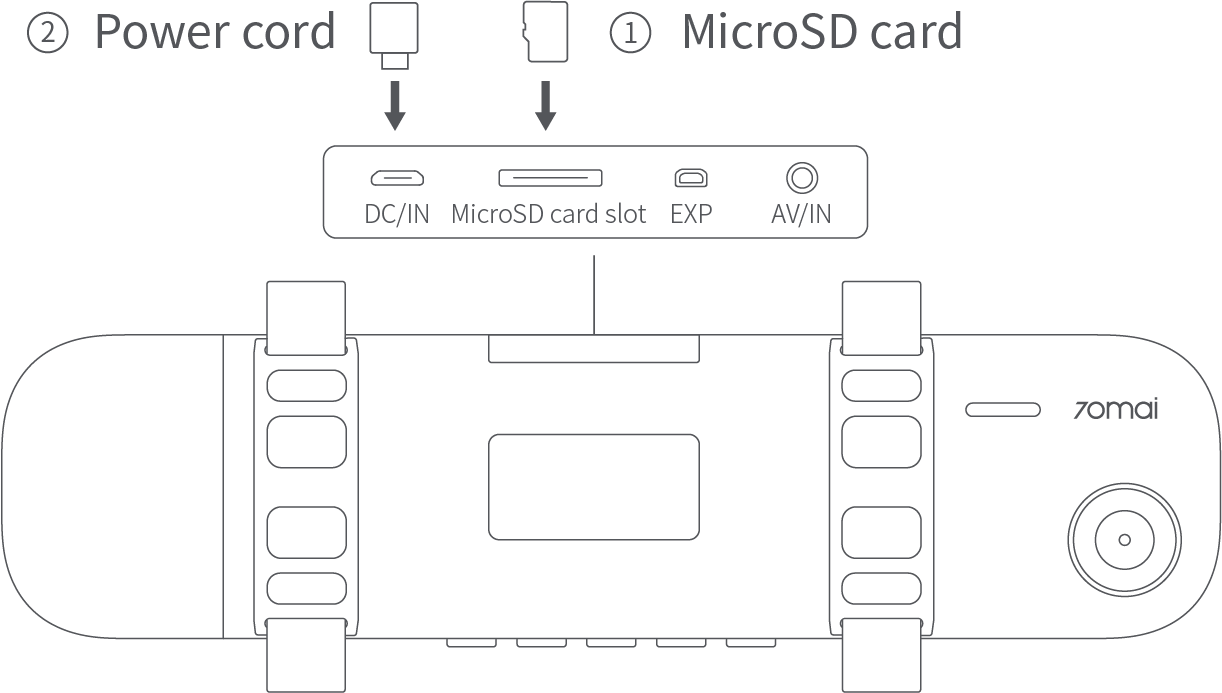

1. Preparation

Insert the MicroSD card into the slot on the dashcam before inserting the power cord into the DC/IN interface on the dashcam.

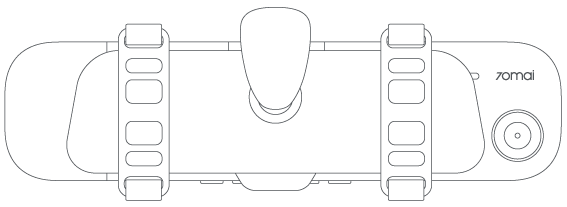

  1. Installation

As shown in the figure below, attach the dashcam to the rearview mirror of your vehicle and adjust its position as appropriate to ensure that the camera is not blocked. Use the fixing straps in the packing box to fix the dashcam.

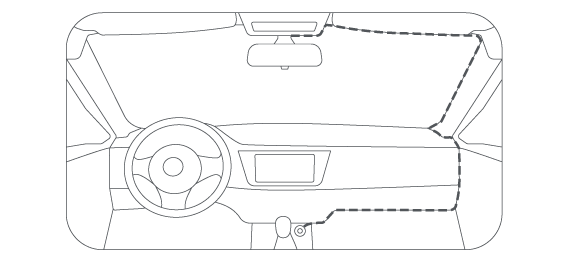

  1. Run the power cord

As shown in the figure below, run the power cord along the front windshield, A-pillar, and co-pilot storage compartment to the cigarette lighter. Insert the car charger into the cigarette lighter receptacle.

* Please use the crowbar in the packing box to embed the power cord into the A-pillar adhesive tape.

* As the positions of cigarette lighter receptacles vary with vehicles, the specific routing of power cords depends on the actual conditions. The preceding figure serves as a reference only.

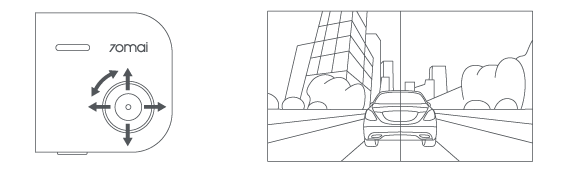

  1. Adjust the camera angle

Start the vehicle or rotate the key to the ACC gear position to supply power to the cigarette lighter. The dashcam will be turned on automatically.

The camera supports universal angle adjustment, with a rotational range of ±4°. Please adjust the angle according to the preview screen to ensure that the camera is forward-facing.
