1. Preparation prior to installation

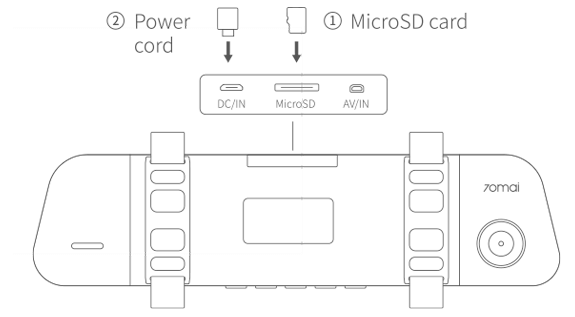

Insert the microSD card into the card slot, followed by inserting the power cord into the power port.

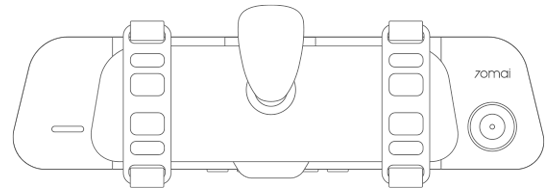

As shown in the figure below, attach the dashcam to the rearview mirror of the original car. Adjust the position of the dashcam properly. If the rearview mirror of the original car is too long, the body may be pulled for adjustment to ensure that the camera is not blocked. Use the fixing straps in the packing box to fix the dashcam.
3. Run the power cord

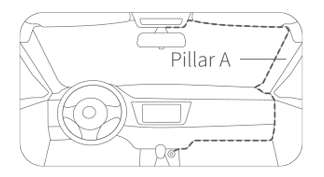

As shown in the figure below, run the power cord along the front windshield, A-pillar, and co-pilot storage compartment to the cigarette lighter. Insert the car charger into the cigarette lighter receptacle.
Tips: Please use the crowbar in the packing box to embed the power cord into the A-pillar adhesive tape.
As the positions of cigarette lighter receptacles vary with vehicles, the specific routing of power cords depends on the actual conditions. The preceding figure serves as a reference only.
4. Adjust camera
Start the vehicle or rotate the key to the ACC gear position to supply power to the cigarette lighter. The dashcam will be turned on automatically.
The camera supports universal angle adjustment, with a rotational range of ±4°. Please adjust the angle according to the preview screen to ensure that the camera is forward-facing.
